16-Port 10/100 Fast Ethernet Switch

ENH916-NWY

SPECIFICATION
Overview

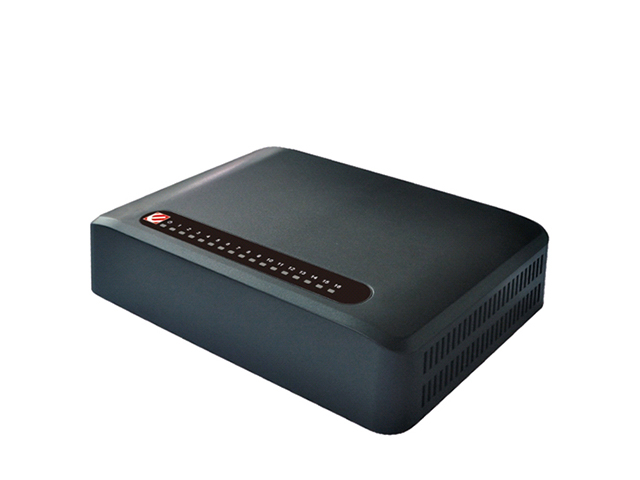

The ENCORE ENH916-NWY 16-Port 10/100 Fast Ethernet Switch is a powerful, high-performance Fast Ethernet switch, with all 16ports
capable of 10 or 100Mbps auto-negotiation operation (NWay), whichmeans the switch could automatically negotiate with the connected
partners onthe network speed and duplex mode. It is ideal for micro-segmenting largenetworks into smaller, connected subnets for
improved performance, enablingthe bandwidth demanding multimedia and imaging applications. Moreover, the10/100Mbps auto-sensing
ability provides an easy way to migrate 10Mbps to100Mbps networks with no pain. Compared to the shared 10Mbps or 100Mbpsnetworks,
the switch delivers a dedicated 10/100Mbps connection to everyattached client with no bandwidth congestion issue.

Store-and-forward switching mode promises the low latency plus eliminates allthe network errors, including runt and CRC error packets.
To work underfull-duplex mode, transmission and reception of the frames can occursimultaneously without causing collisions as well as
double the networkbandwidth.

The switch is plug-n-play without any software to configure and also fullycompliant with all kinds of network protocols. Moreover,
the rich diagnostic LEDson the front-panel provide the operating status of individual port and wholesystem.


FEATURE
  • Provide 16 10/100Mbps Fast Ethernet ports
  • Allow each port to run at its optimal speed while reducing network congestion
  • Feature plug-n-play operation that doesn’t require any software configuration
  • Provide front-panel diagnostic LEDs to monitor the operating status of the ports and the whole system
  • Provide compliance to many networking protocols
  • Low power consumption
Standard:
IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE 802.3x full duplex operation and flow control

Interface:
16 10/100 Mbps RJ-45 NWay switching ports

Cable Connections:
RJ-45 (10BASE-T):Category 3,4,5 UTP/STP
RJ-45 (100BASE-TX):Category 5 or above UTP/STP

Network Data Rate:
10/100 Mbps Auto-negotiation

Transmission Mode:
Auto-negotiation(Full-duplex, Half-duplex)

LED Indications:
System: Power
Ports: Link/Activity

MAC Address Table:
8K MAC address entries

Buffer Memory:
256K bytes

Filtering/Forwarding Rate    10Mbps: 14,880pps/14,880pps
                                           100Mbps: 148,800pps/148,800pps
Operating Temperature:
Operating Temperature: 0~40°C(32°~104°F)
Storage Temperature: -40 ~ 70°C(-40°~158°F)

Operating Humidity:
Operating: 10%~90%, non-condensing
Storage: 5% ~ 90%, non-condensing

Power Supply:
Internal power supply 5V/1A

Emission:
CE, FCC, Class A

Package
1x ENH916-NWY switch
1x user manual
