Mini Display Port to VGA Adapter
ENCA-MDD enables you to connect directly any DVI ready device (monitor, projector…) to a Mini DisplayPort interface (on Laptop
or Desktop…). This product provides an easy and affordable solution between host system and DVI ready display device. This product
is also compliant with both low-bit-rate and high-bit-rate DisplayPort.
ENCA-MDD allows you to connect a DVI ready display device to all new Macs (MacBook / MacBook Pro / MacBook Air / Mac Mini / iMac).
Interlaced modes and reduced blanking modes are not supported.

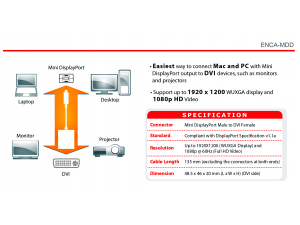

• Easiest way to connect Mac and PC with Mini DisplayPort output to DVI devices, such as monitor and projector
• Compliance with DisplayPort Specification V1.1a
• Support up to 1920 x 1200 (WUXGA display) and 1080p HD video
• Support 18/24/30 bitdepth per pixel color format
• Support DPCD Rev 1.1

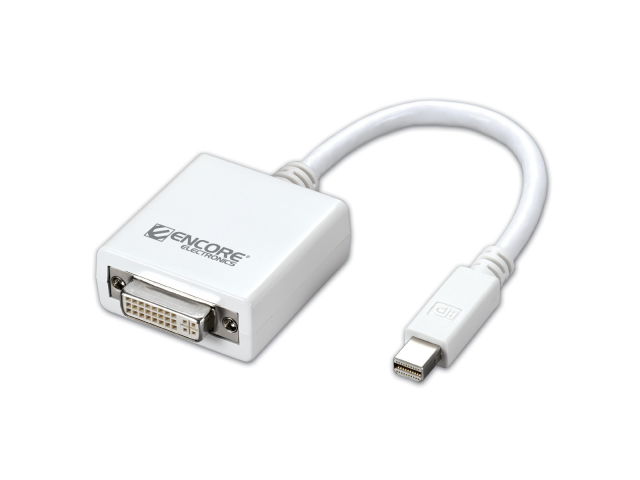

Mini DisplayPort Male to DVI Female
Compliant with DisplayPort Specification v1.1a
Up to 1920X1200 (WUXGA Display) and 1080p @ 60Hz (Full HD Video)
135 mm (excluding the connectors at both ends)
48.5 x 46 x 20 mm (L x W x H) (DVI side)
10 ~ 40 ºC
-10 ~ 80 ºC
FCC, CE, RoHS
