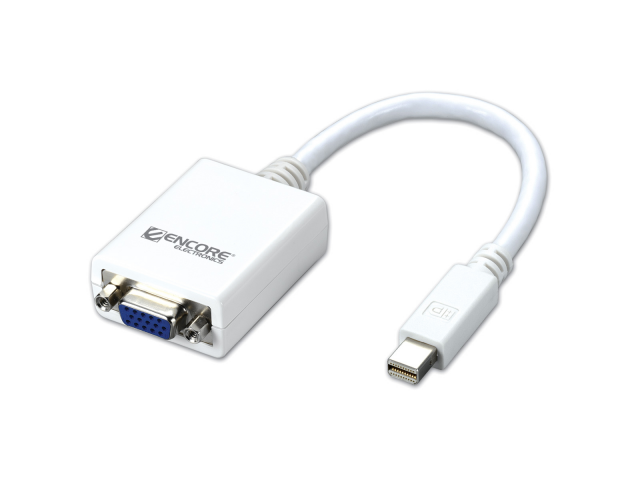

Mini Display Port to VGA Adapter
ENCA-MDV

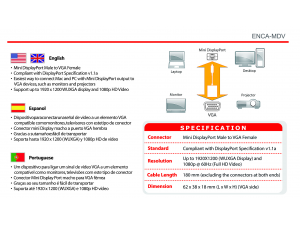

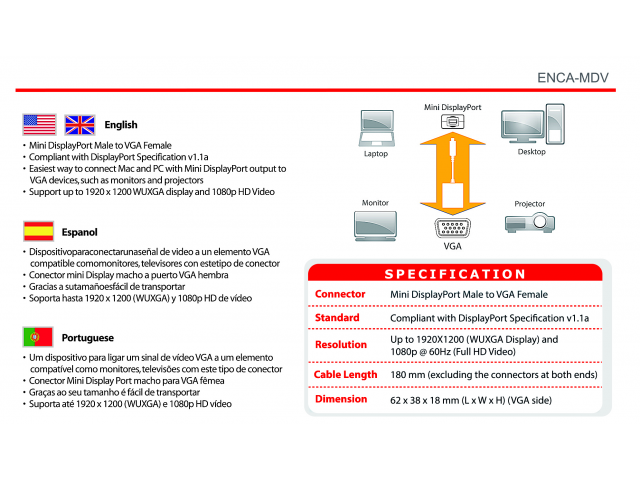

SPECIFICATION
ENCA-MDV enables you to connect directly any VGA ready device (monitor, projector…) to a Mini DisplayPort interface (on Laptop
or Desktop…). This product provides an easy and affordable solution between host system and VGA ready display device. This product
is also compliant with both low-bit-rate and high-bit-rate DisplayPort.
ENCA-MDV allows you to connect a VGA ready display device to all new Macs (MacBook / MacBook Pro / MacBook Air / Mac Mini / iMac).
Note:
Interlaced modes and reduced blanking modes are not supported.
Feature
• Easiest way to connect Mac and PC with Mini DisplayPort output to VGA ready devices, such as monitor and projector
• Compliance with DisplayPort Specification V1.1a
• Support up to 1920 x 1200 (WUXGA display) and 1080p HD video
• Support 18/24/30 bitdepth per pixel color format
• Support DPCD Rev 1.1
Specification
Connector Type:
Mini DisplayPort Male to VGA Female
Standard:
Compliant with DisplayPort Specification v1.1a
Resolution:
Up to 1920X1200 (WUXGA Display) and 1080p @ 60Hz (Full HD Video)
Cable Length:
180 mm (excluding the connectors at both ends)
Dimension:
62 x 38 x 18 mm (L x W x H) (VGA side)
Weight:
45 g
Housing:
Plastic (ABS)
Operation Temperature:
10 ~ 40 ºC
Storage Temperature:
-10 ~ 80 ºC
Certification:
FCC, CE, RoHS
Package Content
• ENCA-MDV
