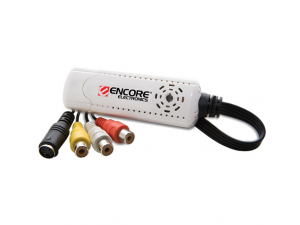

USB Audio/Video Grabber III



The ENMVG-3 is an analog audio/video capture adapter. With this tiny device, you can instantly upgrade your PC
into a digital video recorder. Save your shelf space by converting old VHS, Hi-8 and other analog video tapes into
digital video clips. Moreover, you can easily share the digitized media with friends and family over the Internet!

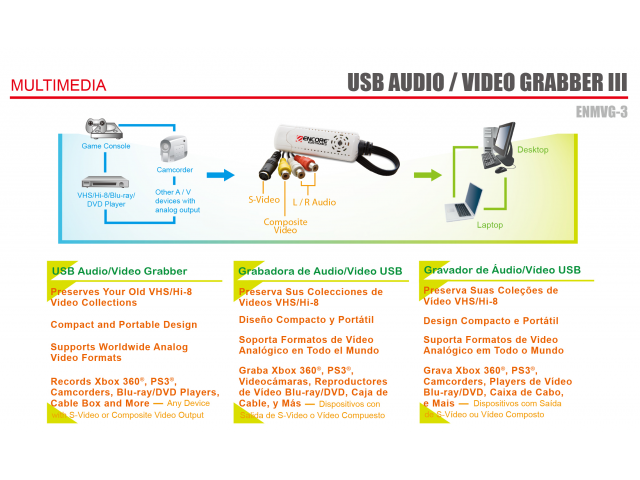

  • Turn PC into Digital Video Recorder: captures video from any device with S-Video or composite AV output                                                                                                                          such as VHS/Hi8/DVD video players, camcorders and game consoles
  • Preserve Old VHS / Hi-8 Tapes: digitize your analog video collection before the tapes are no longer viewable
  • Real-time recording: support MPEG-1, MPEG-2, MPEG-4, VCD and DVD format
  • Plug and Play interface
  • Simple to Use

Device Interface : USB 2.0, backward compatible with USB 1.x
Dimension : 93 x 30 x 15 mm (excluding cables)
Signal Format : NTSC and PAL
Input: Composite RCA and S-Video
Resolution :
NTSC — 720x480, 352x480, 352x240
PAL — 720x576, 352x576, 352x288
AD Converter: 10-bit Analog-to-Digital Converter
File Format: MPEG-1(VCD), MPEG-2 (DVD) and MPEG-4 (XVID)**
**MPEG4 format only provide Full D1 and SIF resolution.
Audio Channel : Stereo
Input: L/R RCA
Sample Rate : 48KHz
Audio Data Rate : 224k bit/second
System Requirements :
Microsoft Windows® 10 / 8 / 7 / XP; Windows Vista®
IBM® PC or compatible, with Intel® Pentium® 4 CPU running at 2.0 GHz or faster
Minimum 128 MB memory
Minimum 100 MB free hard disk space, 5400 RPM or greater
One free USB 2.0 port
1024x768 Graphic Card, DirectX® 9.0 compatible or higher

Notes :
Video recording can use several gigabytes an hour (the higher the quality of the video you record, the more space it
takes on the disc) so a hard drive spinning at 5400 RPM or faster and with plenty of free space is advisable for recording.

Package Contents
Installation CD
User manual
USB extension cable
