USB TV Tuner box

ENUTV-4

SPECIFICATION
Overview

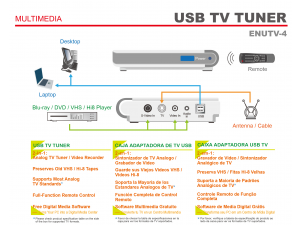

ENUTV-4 is a USB 2.0 compliant TV Tuner Box. Complete with an IR Remote Controller. It supports current analog TV
standard to let users have an instant TV entertainment though the USB of the desktop or laptop computers. Furthermore,
the multiple external input sources including S-Video, Video or A/V and Audio connectors allows the users to convert V8,
DVD, and VCD video stream to your PC.

Feature
  • USB 2.0 input
  • All channel auto scan
  • 16 Channels preview (TV Wall) allows user to select favorite show
  • High speed USB 2.0 connector, no extra power required
  • Noise Reduction & De-interlace technology create sharper and clearer image
  • Time shifting, you wouldn't miss any part of program. Pause a live broadcast, the screen will go back where you pause when played back
  • Friendly OSD interface and functional remote control
  • MPEG-1 and MPEG-2 Video capture can go over 2GB HDD limit
  • Small size, pocket design

Specification

TV format:
Worldwide (except SECAM LL)
Resolution:
Up to 720x480 (NTSC) or 720x576 (PAL)
Video Format
MPEG-1, MPEG-2, and MPEG-4 (XVID)
RF Input:
(75 ohm impedance, F or PH type) (By Mode)
TV input:
(75 ohm impedance, F or PH type)
Video input:
RCA video input / S-Video input
USB:
USB connector Type B
Audio input:
Phone jack
Dimension:
107 x 77 x 25 mm
Certification:
FCC, CE, RoHS
System Requirements:
Interface: One available USB2.0 ports
CPU: Pentium4 2.0GHz or equivalent AMD Athlon™ CPU
Operating Systems: Microsoft Windows® 8 / 7 / XP / Windows Vista™
DirectX: Microsoft ® DirectX ® 9.0C
Graphics Card : 1024x768, DirectX R 9.0c or above compatible graphics card
Sound Card: AC97 compatible PCI sound card
Hard Disc Drive: 100MB free hard disk space for installation, additional space required for video capture and Time-Shifting
System Memory: 256MB of RAM or more is recommended
CD or DVD ROM: For installing driver and application
Antenna for analog TV
Package Contents:
ENUTV-4
Driver CD
Remote Control
USB Cable
Quick Guide
