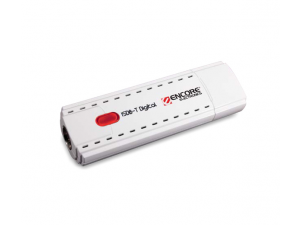

USB Digital TV Tuner (ISDB-T/SBTVD Full-SEG)

ENUTV-DITF4

SPECIFICATION
Overview

With seamless viewing technology, ENUTV-DITF4 provides an excellent combination of speed and stability.
This advanced seamless viewing technology can always keep smooth video streaming even though in unstable
transmission conditions.

ENUTV-DITF4 brings high quality video and audio directly to your computer. This compact tuner stick features
built-in ISDB-T/SBTVD receiver, high-performance external antenna, and high speed USB 2.0 interface. Now, you
can enjoy your favorite TV shows even on a road trip!

The design of ENUTV-DITF4 matches your style. It is fully compatible with your desktop or laptop PC. Its compact
design with high speed USB2.0 interface lets you enjoy high quality digital TV programs anywhere using the digital
antenna. It comes with a friendly software application complete with recording features. Never miss your favorite
shows with scheduled recording. With ENUTV-DITF4 build-in application, you can record digital TV perfectly to files.


Feature
  • 2-in-1 Product: Digital TV Tuner / Digital Video Recorder
  • Watch free-to air ISDB-T/SBTVD TV programs in Windows on your PC or Notebook
  • ISDB-T full segment TV standard support
  • Real-time MPEG4 recording
  • Scheduled recording and time-shift live TV: watch and record your favorite TV shows
  • H.264 High Quality Video Compression: crystal clear picture quality
  • Time-shifting playback, simultaneously watch and record the TV program with immediate replay and pause
  • Support subtitle or closed captioningv
  • Still image snapshots
  • Support EPG (Electronic Program Guide) and schedule recording (EPG feature depends on television broadcast used in different regions)
  • Support Windows® XP / Vista / 7
  • Full function remote control

Specification

Device Interface:
USB 2.0
TV Tuner:
ISDB-T / SBTVD (Full-SEG)
Channel Frequencies:
VHF 170 ~ 240 MHz
UHF 470 ~ 862 MHz
Antenna Connector:
75Ω Coaxial Input (for free-to-air ISDB-T / SBTVD)
Video Output Resolution:
Up to Full HD 1080P
Digital Video Format:
MPEG-4 AVC (H.264)
Digital Audio Format:
MPEG-4 HE-AACv2
Dimensions:
95 x 30 x 15 mm
System Requirements:
Available USB 2.0 port
Intel® Pentium® 4 2.0 GHz or above / equivalent AMD® Athlon™ CPU
Minimum 256 MB memory
Minimum 100 MB free hard disk space
Microsoft Windows® 7 / XP; Windows Vista® 32bit/64bit
Graphic Card : 1024x768, DirectX® 9.0c or above compatible graphic card
Sound Card: AC97 compatible PCI sound card
CD-ROM/DVD-ROM drive
Notes:
To support High definition TV, the minimum requirement is one of the following video cards with DX-VA
(DirectX Video Acceleration) enabled:
ATI Radeon 7200 or above
nVidia Geforce MX 440 or above
Intel 82865 or above

To support HDTV 1080p with subtitle/DTV CC: a Pentium IV 2.8 GHz processor (or higher) is recommended.
The minimum requirement is one of the following video cards with DX-VA enabled:
ATI Radeon X700 (256M RAM) or above
nVidia Geforce FX 6200 (256M RAM) or above
Package Contents:
ENUTV-DITF4
Remote Control
Installation CD
Quick Installation Guide
USB Cable
TV Antenna
