USB Audio/Video Grabber III

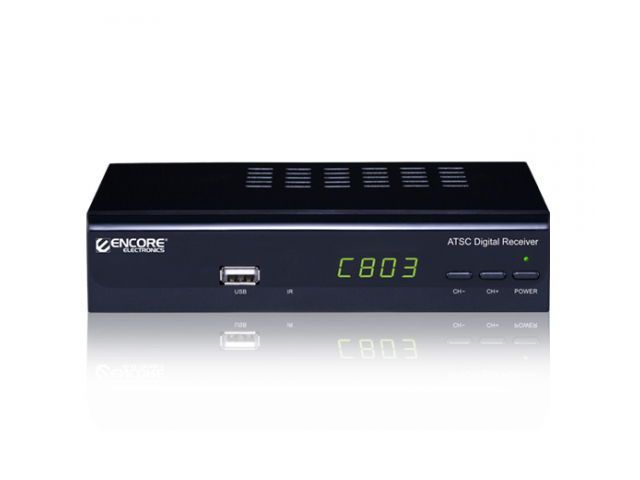

ENXTV-DAQ, the Encore's ATSC Digital TV Receiver Box- just connect the Receiver Box between the TV signal source
and your TV set, you can now enjoy free-to-air digital TV!
All these means -- clear images and sound quality free from ghosting (double image), fuzziness or snow. You get to
keep your old TV set along with all the new features of digital TV, including EPG (electronic program guide), PVR
(personal video recorder), and more. You can browse the up-to-date TV guide on your screen or schedule auto program
recording at just a push of a button.
  • Full compliant with ATSC Digital Television Standard
  • Support MEPG-1/2/4
  • Bandwidth: 6M
  • Demodulation: 8-VSB
  • Video decoding and output: 1080p/1080i/720p/480p/480i
  • Analog video output: PAL/NTSC
  • Conversion between SD programs and HD programs
  • USB2.0 supported for upgrade, PVR and time shifting
  • RF modulator for NTSC channel 3/4 output
  • Closed caption / Subtitle
  • Aspect ratio: 4:3/16:9
  • Electronic program guide (EPG)
  • Software upgrade
  • 32 bits true color OSD
  • Program editor

High sensitive and reliable silicon tuner
Input Frequency Range : 2-69 channel
IF Bandwidth : 6 MHz
Input Signal Level: -83dBm ~ -5dBm
RF Connector: F-type connector
Input impedance: 75Ω
RF Input: x 1
RF Output: x 1
Digital Output: 1 x HDMI
Analog Output: CVBS/L/R
Digital Audio Output: 1 x Coaxial
USB: 1 x USB2.0 for upgrading, multi-media play, PVR and time shifting
Environmental Conditions:
AC input: 110 ~ 230V
Power Consumption: Max. 6W
Stand-by Power Consumption: <1W
Operating temperature: 0 ~ 40°C
Dimension: 168 x 95 x 38 mm
