Wire

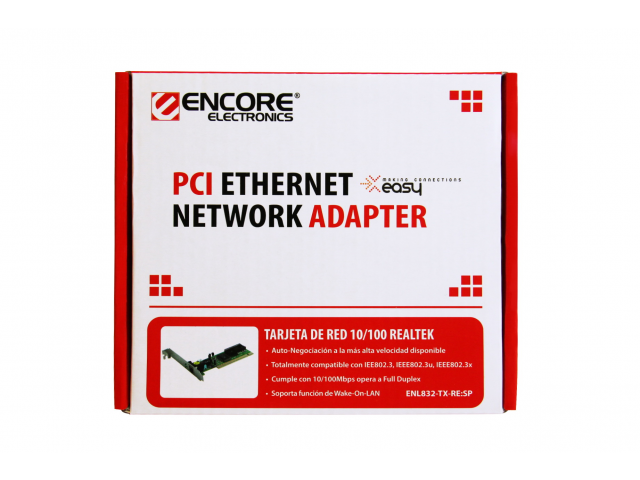

10/100 Fast Ethernet PCI Adapter

ENL832-TX-RE

SPECIFICATION
OVERVIEW

Built with the Realtek 8139 chipset series, the ENL832-TX-RE is a fast Ethernet card that operates at 10/100 Mbps. It is
compliant with PCI version 2.0/2.1 and it is known for reliability and superior performance.

The card is an ideal solution for your Ethernet network. The Nway auto-negotiation feature allows the card to determine
the connection speed (10/100 Mbps) and operation mode (half/full duplex) automatically.

Installation could not be easier with a comprehensive set of drivers for most of the operating systems. While rich LEDs
are provided for network management, diagnosis and troubleshooting, this adapter also utilizes bus master mode for
optimizing the maximum bandwidth and throughput.

FEATURES

• NWay auto-negotiation mechanism to automatically detect the network speed
  (10/100Mbps) and transmission mode (Full/Half duplex)
• Drivers on the diskette for Windows 2000, XP, 2003, 2008, Vista, 7, NetWare and Unix.
• 32-bit bus master for high throughput and low CPU utilization

SPECIFICATIONS

Standard: IEEE802.3 for 10BASE-T IEEE802.3u for 100BASE-TX
PortsOne 10/100Mbps RJ-45 ports, Supports Auto MDI / MDI-X
Bus Interface: PCI Local Bus V2.0/2.1 32-bit
LED Indicator Link
Operating Temperature 0°C - 50°C (32°F - 122°F) Operating Humidity 10% ~ 90% (non-condensing)
Dimension: 121 x 120 x 19 mm (Length x Width x Height)
Certifications: FCC Class B, CE Certified
