USB Audio/Video Grabber III

ENMVG-5

SPECIFICATION
Overview

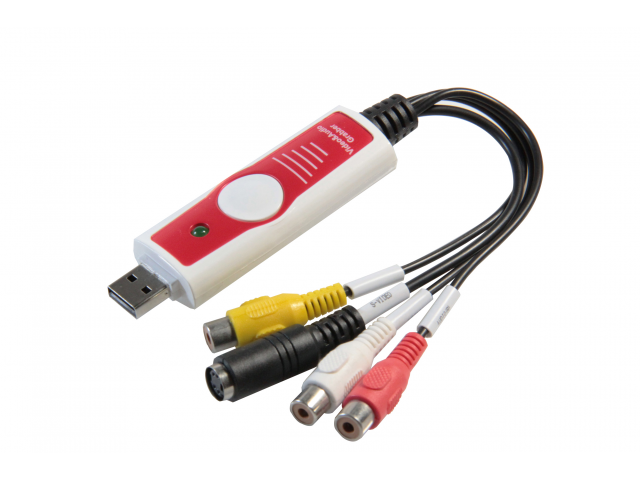

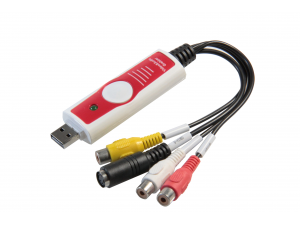

The ENMVG-5 is an analog audio/video capture adapter. With this tiny device, you can instantly upgrade
your PC into a digital video recorder. Save your shelf space by converting old VHS, Hi-8 and other analog
video tapes into digital video clips.

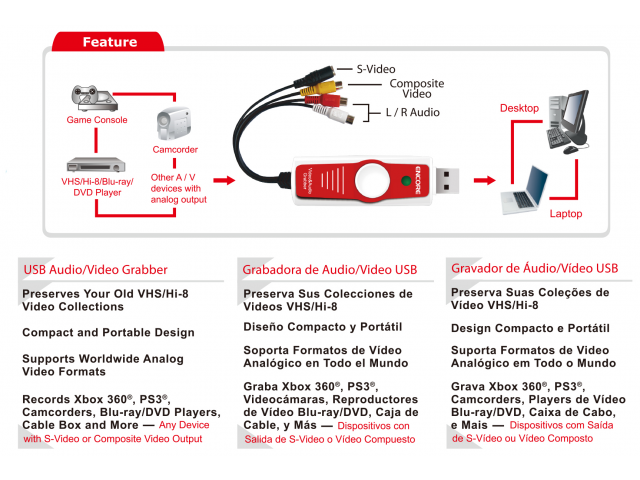

Features

Turn PC into  Digital Video Recorder :
captures video from any device with S-Video composite AV output such as VHS/Hi8/DVD video players, camcorders
and game consoles.

Preserve Old VHS I Hi-8 Tapes :
digitize your analog video collection before the tapes are no longer viewable

Real-time recording :
support MPEG-1, MPEG-2, MPEG-4, VCD and DVD format.

Plug and Play interface

Simple to Use

Specification
  • Device Interface: USB 2.0 backward compatible with USB 1.x
  • Dimension: 93 x 30 x 15 mm (excluding cables)

Video
  • Signal Format: NTSC and PAL
  • Input: composite RCA and S-Video
  • Resolution: NTSC -  720 x 480,   352 x 480,   352 x 420                                                                                                                                                                                          PLA -     720 x 576,   352 x 576,   352 x 288
  • AD Converter: 10-bit Analog-to-Digital Converter
  • File Format: MPEG-1(VCD), MPEG-2(DVD), and MPGE-4(XVID)

Audio
  • Audio Channel: Stereo
  • Input: L/R RCA
  • Sample Rate: 48KHz
  • Audio Data Rate: 224k bit/second

Notes:
Video recording can use several gigabytes an hour(the higher the quality of the video you record, the more space it takes
on the disc) so a hard drive spinning at 5400 RPM or faster and with plenty of free space is advisable for recording

Package Contents
  • ENMVG-5
  • Installation CD
  • User manual
  • USB extension cable
